- Use of Square Cone Mixer

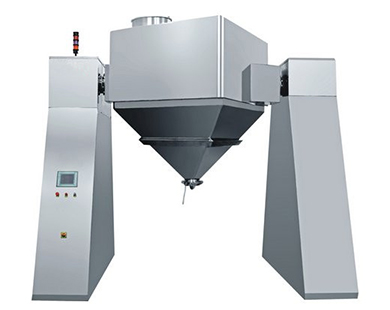

Square cone mixer is a novel material mixer widely used in pharmaceutical, chemical, metallurgical, food, light industry, feed and other industries.The machine can mix powders or particles very evenly, so that the mixed material can achieve the effect.It is mainly used for mixing solid particles, powder and other materials in pharmaceutical industry. It has the advantages of smooth transmission, reliable structure, large mixing volume and high mixing uniformity.2. The characteristics of square cone mixer: 1. The whole machine is novel in design, compact in structure, beautiful in appearance, 99% homogeneity of mixing, and 0.8% volume loading coefficient.2. Low rotation height, smooth operation, reliable performance and easy operation.3. The inner and outer walls of the barrel are polished by mirror, no dead angle, easy discharging, easy cleaning, no cross-contamination, which meets the requirements of GMP.
- Use of Square Cone Mixer
Specifications FH-300 FH-500 FH-1000 FH-1500 FH-2000 FH-3000 Mixing Barrel Volume (L) 300 500 1000 1500 2000 3000 Maximum loading volume (L) 240 400 800 1200 1600 2400 Maximum loading weight (kg) 150 250 500 750 1000 1500 Spindle speed (r/min) 14 13 12 10 8 6 Motor power (kw) 1.5 2.2 4 5.5 7.5 11 Weight (kg) 500 700 1000 1500 2000 3000 Shape size (length, width and height) (mm) 1850 x 1280 x 1980 2200 x 1530 x 2220 2800 x 2000 x 2820 2930 x 2300 x 2950 3100 x 2460 x 3160 3350 x 2820 x 3800 - ·
Mixed crushing series
Square cone mixer
TIME:22-01-18
